Ashcraft Aero Works, Inc. provides the aircraft homebuilder with the DR-109, DR-108 and other exciting new designs, parts for the DR-107, and engineering for many aerospace projects.

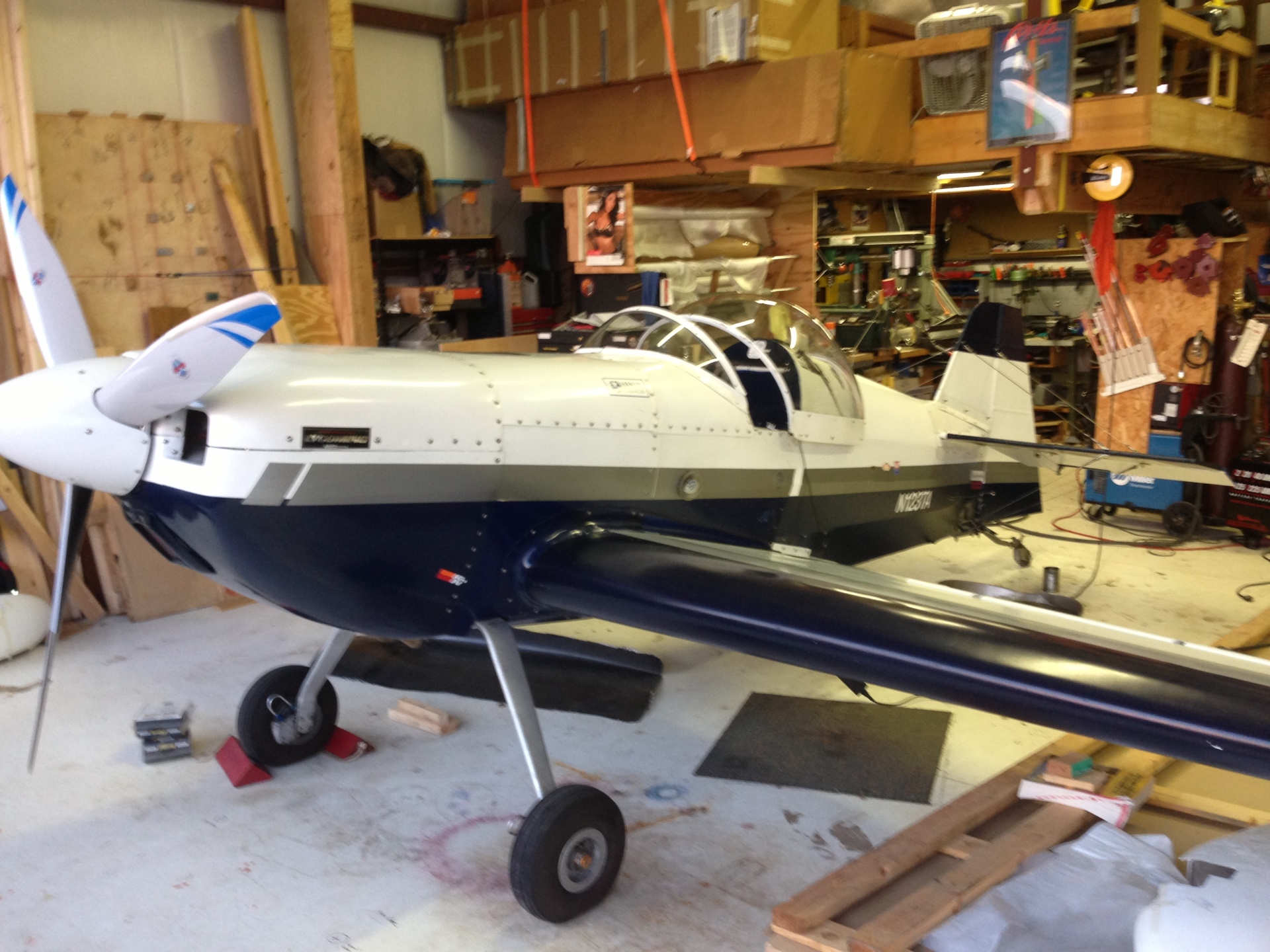

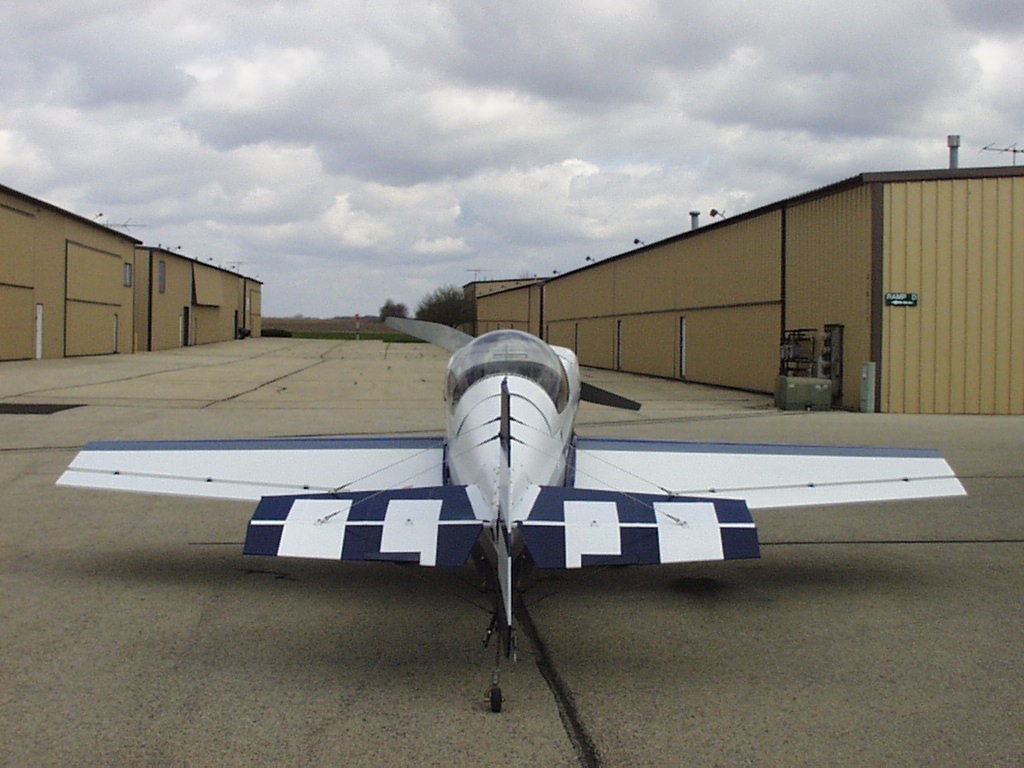

Prototype DR-109 by original designers and builders

DR-109 SPECIFICATIONS (from the Prototype)

Length: 22 ft 0 in
Wingspan: 24 ft 0 in
Wing area: 114.00 sq ft
Empty weight: 1,495 lb
Gross weight: 2,275 lb
Powerplant: AEIO-540-D4A

Maximum speed: 205 mph
Cruise speed: 178 mph
Stall speed: 58 mph
Range: 534 mi
Rate of climb: 2,800 ft/min

Builder Manuals & Plans

We've digitized the original DR-109 manuals for your convenience. Plans were re-engineered; you choose which components to build or buy.
Parts & Kits

From brackets to cowlings, welded trusses and tails, carbon fiber cowls and fairings, AAW will supply the parts you choose not to make yourself.
Complete Airplanes

Ashcraft Aero Works will professionally complete your project to your specifications, with the design enhancements you need.
